The BX72RSH wood chipper is available now.

BX72RSH heavy duty professional wood chipper, for tractor from 40 to 100 HP and CAT I / II three-point hitch.

Free shipping to any location within the lower 48 states (or continental U.S.). Alaska, Hawaii & Canada Require a surcharge.

Free PTO shaft included.

Application:

Nova Tractor BX72RSH wood chipper is PTO shaft driven wood chipper for professional and fast processing of wood with up to 7 inch in diameter. Suitable for medium and large tractors with 40 to 100hp and Cat II three-point hitch.

Technology:

Tractor independant built-in hydraulic system. The Nova Tractor BX72RSH wood chipper offers best performance at 60 to 70hp tractor engine power. Wood branches are pulled into the wood shredder using the built-in tractor independent hydraulic system, driving 2 opposed feeding rollers, which drag in the wood into the wood chipper. The Nova Tractor BX72RSH offers fast and easy operation. The two infeed rollers are mounted with ball bearings on each side so that both rollers are firmly guided, unable to tilt in any direction. The large safety bracket operates the hydraulic functions (IN - OUT - STOP) of the feeding rollers, so that almost all wood jams can be easily solved by the "reverse" gear. Your tractor does not need any hydraulic connectors. The included safety PTO shaft with friction clutch drives the wood chipper and the integrated hydraulic system that comes with tank, pump and all the necessary pipes. Depending on your tractor´s PTO speed the built-in hydraulic system creates up to 250bar pressure, pumping up to 12L/min hydraulic oil from the 12L tank mounted on the BX102RSH shredder.

Steplessly adjustable roller speed. Input roller speed is steplessly adjustable for easy adjustment of the chipper performance to diameter and type of wood. Smaller diameter can be pulled in and processed faster by the Nova Tractor BX72RSH wood chipper than larger or harder wood diameter. Especially for larger tractors with more than a 200bar / 2000mpa hydraulic pressure system, the BX72RSH is equipped with a second pressure valve in the input pressure pipe, so that the adjustment of the input roller speed can also be fine tuned when attached to large tractors.

Super heavy duty flywheel. Four 9.5inch long reversible knives, made of A8 level hardened tooling steel, are mounted on a 3/4inch wide and 220lbs heavy rotor of the BX72RSH wood chipper. Wood of up to 7inch diameter can be chipped into 1/2 to 2 inch sized pieces. Additionally mounted winglets on the rotor create the necessary air flow needed to guide even difficult material through the chipper. Inside the massive rotor housing additional replaceable branch breakers are mounted to even shred small branches efficiently.




The output hopper height is 7.5ft, can be turned by 230° and is able to throw the wood chips up to 40ft far. Trailers, containers and big bags can be easily filled. An output hopper extension of 20inch from 7.5ft to 9.5ft is optionally available, so that even large truck trailers can be easily filled. The Nova Tractor BX72RSH has a capacity of up to 15 cu yd (12m³/h) wood chips per hour.

Easy maintenance. The newest features of the Nova Tractor BX72RSH wood chipper are an easy to open service door under the lower input roller, so that debris and wood parts can be easily removed and movable parts can easily be serviced. The completely redesigned BX72RSH wood chipper also offers a trouble free access to the feeding rollers, where now the adjustable counter knife can also be found. Just 2 bolts have to be loosened to lift the upper input roller together with its massive mounting frame and service the infeed rollers fast and efficiently.





Easy maintenance. For transportation of the chipper, the large input chute can be easily folded up by only one person and can be secured without any tools. By removing only one bolt, you get access to the rotor and knives of the Nova Tractor BX72RSH wood chipper, making maintenance jobs are matter of minutes. The extremely heavy 220lbs rotor disc creates a very strong air flow with its special design winglets, so that stuck material inside the chipper is virtually impossible. Since the hydraulic rollers can turn backwards instantly, blocked material in the input chute can be pulled out of the chipper within seconds.

Wide chute open.The new foldable and extremely wide 35inch input chute can be operated by the new safety bar from all sides of the machine.

The Nova Tractor BX72RSH comes with a PTO shaft with friction clutch for a perfect and safe power transmission from the tractor.

The Nova Tractor BX-shredders comply with all safety regulations and is CE tested following the 2006/42/EC machine directive.

Partially assembled machines do not contain any fuel, oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.


Technical Data
BX72RSH
Dimensions working condition (LxWxH)95x48x90 inch
height 7.5 ft
Diemensions transport condition (LxWxH)
87x51x91 inch
Net weight 1100 lbs

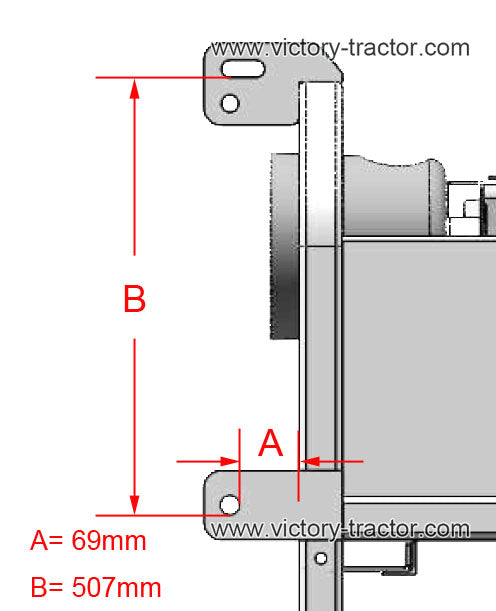

3-point hitch Cat I (Cat II bushing included)
PTO shaft RPM540 ~ 1000 RPM
Best performance. PTO shaft RPM1000 RPM
length of PTO shaft39 inch
PTO shaft safetyfriction clutch
drive systemdirect drive
lenght of hydraulic pipes exceed 3 point upper hitch side43 inch
Tractor engine power recommended 40 -120hp
power needed for max. performance 50 - 80hp
rotor diameter 30 inch
rotor width 3/4 inch
rotor weight 220 lbs
number of knifes 4 + 1
rotor knife9.5x2.4x0.35 inch, reversible
counter knife8.5x2x0.35 inch
counter knife adjustment capacity 0.3 inch
hopper opening35x28 inch
chipper housing opening (width x height) 7x8 inch
max. diameter of shredding material < 7 inch
adjustable size of shredded material0.5 to 2 inch
feeding systemHydraulic foreward/backward
discharge hopper max height from ground7.5 ft (9.5 ft with option extended chute)
hopper turning angle0 - 230°
material strength of housing 1/4 inch
paintingpowder coated
metal transportbox (LxWxH)90x51x50 inch
