BCRL-series - for working widths from 45inch to 61inch.

Free shipping to any location within the lower 48 states (or continetal U.S.). Alaska, Hawaii & Canada Require a surchage !

Free PTO shaft included.

Ditch mower for small and medium tractors with 15hp to 40hp with CAT I. 3-point hitch.

Application:

Nova Tractor BCRL middle duty ditch mower with 0.88lbs flail hammers, for small and medium tractors from 15hp to 40hp engines with CAT I. / Cat. II 3-point hitches, working width is from 45inch to 61inch, 33inch hydraulic side-shift capacity, mowing range angle from -60° to +90°, the maximum distance from the middle of the tractor to the right side of the mower is up to 94 inch , depending on the BCRL model.

The hydraulic swivel arm not only allows mowing in almost any position, but it also saves manoeuvring in narrow corners when you use the BCRL as regular flail mower. Your tractor needs 2 double acting hydraulic control circuits in order to fully operate the swivel arm.


Technology:

Forged flail hammer. Nova Tractor BCRL is with forged and galvanized high performance hammer knives, each weight is 0.88lbs.

Mechanical crash protection system: The Nova Tractor BCRL series offers a crash protection system, which lets the mower swing out to the back, in case you hit a solid piece of material. This additional swinging feature gives the tractor driver the opportunity to brake in time, before serious damage is done to the mower. This safety feature is totally maintenance free and runs reliably for years.

Safety valve protection. Nova Tractor BCRL has 2 safety valve to prevent tractor falling accident due to mower falling too fast. When transport the BCRL, Nova provide 2 locking pin to keep mower in safe transport position.

Replaceable counter knife. The new replaceable counter knife, integrated in the mower housing, are helping to do an even more efficient job as before.

Heavy duty roller. The mowing height is adjusted by the heavy, ball-bearing mounted self cleaning rear roller, to prevent the mower from cutting into the ground on bumpy surface.

Heavy duty front flaps. The mower′s front is equipped with heavy duty safety flaps to prevent debris and stones being thrown out of the machine.

Solid wooden packing box. The mower is delivered in the massive Nova wooden boxes.

Electronically balanced rotor. Like all other Nova Tractor mowers, the BCRL series has an electronically balanced rotor shaft which is driven by 2 or 3 belts depending on the working width. Despite the high flail hammer knife weight of 0.88lbs, this guarantees an almost 100% power transfer rate with virtually 0% belt slippage. The new Nova belt cover is unique in the BCRL mower class. The correct belt tension can be checked within seconds without having to remove the belt cover. This makes service and maintenance a lot easier than before.The heavy free-wheel gear box runs in an oil bath, so the transmission oil has to be filled up before you first use the machine.

We from Nova Tractor firmly believe that you will not find a better value for money mid size flail mower in the US market. Feel free to compare ours to the other products in the market and we are sure you will agree.


ATTENTION:

BCRL ditch bank mower has two cylinders, so it needs two loops tractor rear hydraulics.


Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.

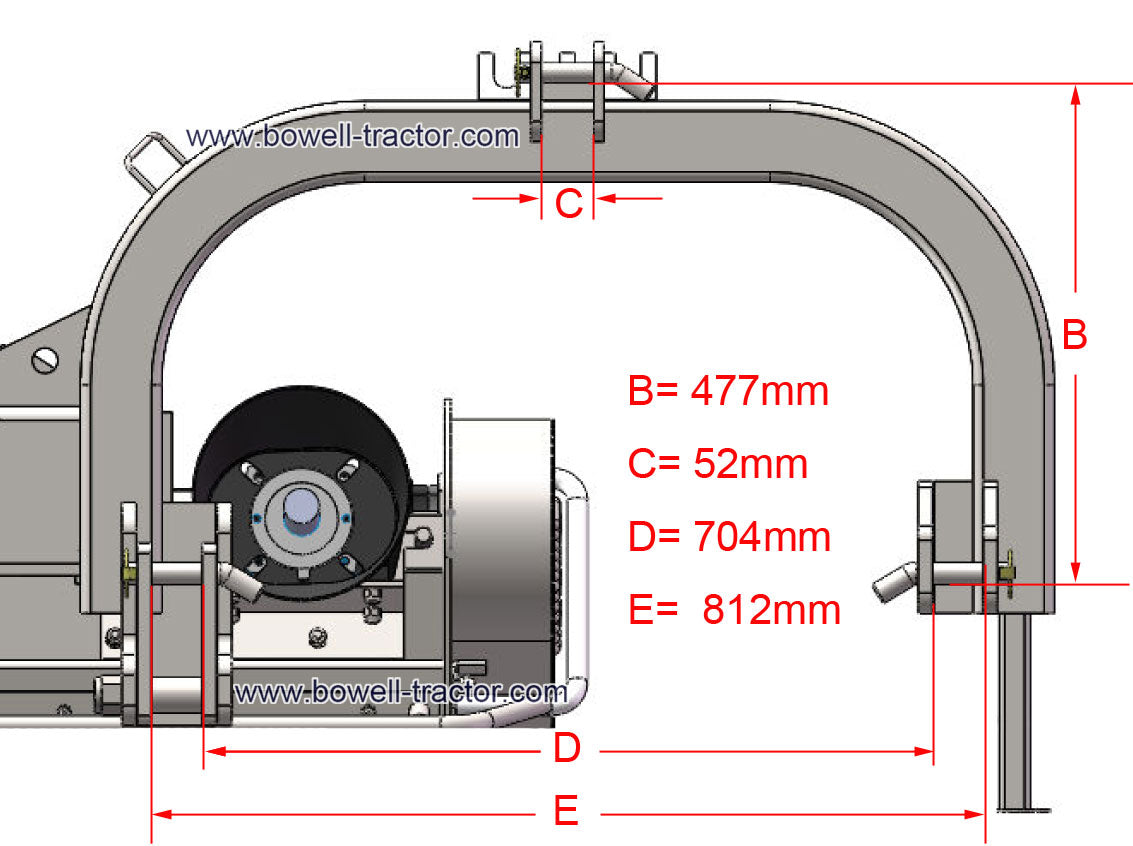

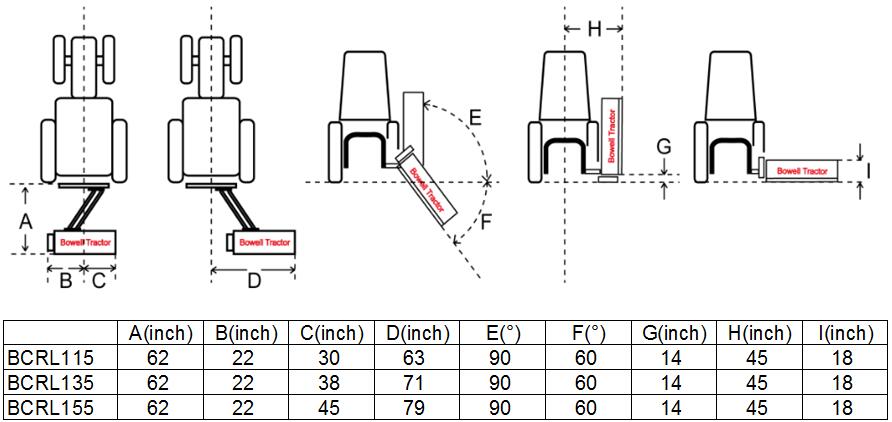

Check mower's position on your tractor according to this size list.

Technical Data
BCRL-115
BCRL-135
BCRL-155
Dimensions (LxWxH)
1300x1280x610mm / 52x51x24inch
1300x1480x610mm / 52x58x24inch
1300x1680x610mm / 52x66x24inch
total weight
271KG / 597lbs
285KG / 628lbs
305KG / 672lbs
cutting width
1150mm / 45inch
1350mm / 53inch
1550mm / 61inch
adjustable mowing height
20 - 60mm / 0.75-2.25inch
hydraulic side movement
847mm / 33inch
max. range from middle of tractor
1603mm (horizontal position)
1803mm (horizontal position)
2003mm (horizontal position)
max. range from middle of tractor
1343mm / 52inch (in 90° position for hedge trimming)
slope mowing able
-60° ~ 90°
3-point hitch
Cat 1
PTO shaft clockwise
540 RPM
1500mm / 59inch
PTO shaft length
total length of hydraulic pipes
70/79/121/131inch
working efficiency per hour (approx.)
1.3 – 2.6acre
1.5 – 2.9acre
1.8–3.3acre
drive system
2 belt system
2 belt system
3 belt system
Tractor engine power, recommended
15-25hp / 11-18kw
20-30hp / 15-22kw
25-40hp / 18-30kw
material strength flail shat cover
4mm / 0.15inch
material strength side walls
6mm / 0.23inch
painting
powder coating
flail form
hammer (Y-knives available)
number of flails (separately exchangable)
24
24
30
weight per flail
400gr / 0.88lb
RPM of flail shaft
2200
wooden transport box (LxWxH)
136x80x70cm / 54x32x28inch
156x80x70cm / 62x32x28inch
176x80x70cm / 70x32x28inch
