We have MXZ-pro 240/260 mower in stock, since the MXZ-PRO mower is too heavy, so we will not supply free shipping and charge you trucking fee, call us for details.

MXZ-pro 240/260 - for 94/102 inches working width, for 5 feet high grass and branch, for 90 - 150HP tractor.

Heavy duty flail mower with hydraulic side-shift for larger tractors with 90hp to 150hp engines with CAT II / CAT III 3-point hitches for front and rear side mounting.

Free PTO shaft included.

Technology:

Double housing. For wide and heavy fail mowers, using very high RPM on the rotor shaft, a torsion-resistant and low vibration housing is the precondition for a reliable machine. Next to massive side walls, which are 10mm thick on the Nova Tractor MXZ-pro-series, best results are achieved when using double walled housings. The Nova Tractor MXZ-pro-mower comes with double housing design. This leads to a very smooth operation of this professional implement.

20 inches offset capacity . Nova Tractor MXZ-pro mower is with 20 inches offset capacity.

Floating hitch design . Nova Tractor MXZ-pro mower is with floating hitch design, protect the mower when mowing on uneven ground. It can be mounted on tractor's both front and rear.

New 3.3 LBS forged flail hammer.  Nova Tractor MXZ-pro is with forged and galvanized high performance hammer knives, each weight is 1500gr / 3.3lbs.

Replaceable counter knife. The new replaceable counter knife, integrated in the mower housing, are helping to do an even more efficient job as before.

Heavy duty roller. The mowing height is adjusted by the heavy, ball-bearing mounted self cleaning rear roller, to prevent the mower from cutting into the ground on bumpy surface.

Heavy duty rotor shaft. The MXZ-pro mower use the rotor bigger than MXZ mower.

Heavy duty front flaps. The mower's front is equipped with heavy duty safety flaps to prevent debris and stones being thrown out of the machine.

Solid wooden packing box. The mower is delivered in the massive Nova Tractor wooden boxes.

5 belts Driven system. Like all other Nova Tractor mowers, the MXZ-pro series has an electronically balanced rotor shaft which is driven by 5 belts depending on the working width. Despite the high flail hammer knife weight of 3 lbs, this guarantees an almost 100% power transfer rate with virtually 0% belt slippage.

Electronically balanced rotor. All the Nova Tractor mowers has an electronically balanced knife shaft which is driven by 3 or 4 wide belts. The heavy free-wheel gear box runs in an oil bath, so the transmission oil has to be filled up before you first use the machine.

We from Nova Tractor firmly believe that you will not find a better value for money mid size flail mower in the US market. Feel free to compare ours to the other products in the market and we are sure you will agree.

Partially assembled machines do not contain any fuel, oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.


Technical Data MXZ-pro 240
MXZ-pro 260
Dimensions (HxWxD) 101x42x39 inches
109x42x39 inches
total weight (include the PTO shaft) 1719 lbs
1940 lbs
cutting width 94 inches
102 inches
adjustable mowing height 0.75 - 2.95inch
0.75 - 2.95inch
recommended grass height < 6 feet
< 6 feet
hydraulic side movement 20inches
20inches
3-point hitch Cat II & III
Cat II & III
PTO shaft, clockwise 3540 RPM
3540 RPM
PTO shaft length T8-1000
T8-1000
working efficiency (approx.) 2.5~5.5 acre/h
3~6 acre/h
no. of belts / width 5 / 17mm
5 / 17mm
tractor engine power; recommended 75-150HP
80-150HP
housing thickness 5+5 mm (double housing)
5+5 mm (double housing)
side walls thickness 10mm 10mm
flail form forging hammer
forging hammer
number of flails (separately exchangable) 20
24
weight per flail 3.3 lbs
3.3 lbs
RPM of flail shaft when PTO 540RPM 2140 RPM
2140 RPM
RPM of flail shaft when PTO 1000RPM (exchange pulleys up and down) 2270 RPM
2270 RPM
painting powder coated
powder coated
rotor pipe size 6.6 / 0.4 inches
6.6 / 0.4 inches
roller pipe size 7.7 / 0.25 inches
7.7 / 0.25 inches
transport box (LxWxH), lift gate for delivery is not available, the packing weight is too heavy 107x42x40 inches
115x42x40 inches

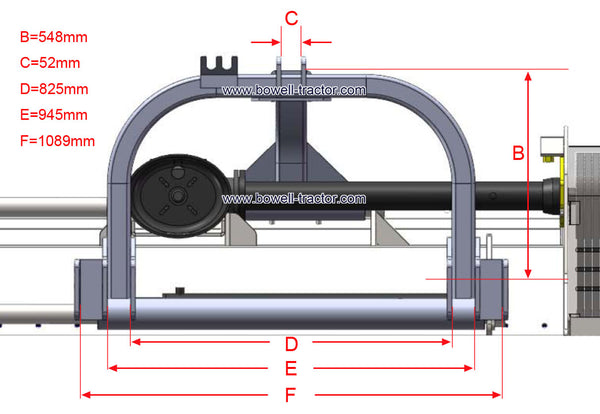

Check mower's 3 point hitch size from here.




Check mower's position on your tractor according to this size list.
