Visit www.novatractor.com for PayPal payment.
Visit www.nova-tractor.com for Credit Card and other payment method.
We have sold out BCRM135/175, we only have BCRM155 in stock, call us for details.
BCRM135 $3000, BCRM155 $3150, BCRM175 $3300.
BCRM-series - for working widths from 135cm/53inch to 195cm/76inch.
Free shipping to any location within the lower 48 states (or continetal U.S.). Alaska, Hawaii & Canada Require a surcharge !
Free PTO shaft included.
Ditch mower for small and medium tractors with 30hp to 60hp with CAT I. 3-point hitch.
Application:
Nova Tractor BCRM middle duty ditch mower with 800gr/1.76lbs flail hammers, for small and medium tractors from 30hp to 60hp engines with CAT I. / Cat. II 3-point hitches, working width is from 1350mm/53inch to 1750mm/68inch, 110cm/43inch hydraulic side-shift capacity, mowing range angle from -60° to +90°, the maximum distance from the middle of the tractor to the right side of the mower is up to 94 inch , depending on the BCRM-model.
The hydraulic swivel arm not only allows mowing in almost any position, but it also saves manoeuvring in narrow corners when you use the BCRM as regular flail mower. Your tractor needs 2 double acting hydraulic control circuits in order to fully operate the swivel arm.
Technology:
Comer Transmission. Nova Tractor BCRM ditch mower use transmission from Comer Industries.
SKF ball bearing for rotor shaft. Nova Tractor BCRM mower is with rotor shaft with SKF ball bearings and CNC bearing seats.
Stainless steel grease nipples. Nova Tractor BCRM mower is stainless steel grease nipples.
Forged flail hammer. Nova Tractor BCRM is with forged and galvanized high performance hammer knives, each weight is 800gr/1.76lbs.
Mechanical crash protection system. The Nova Tractor BCRM series offers a crash protection system, which lets the mower swing out to the back, in case you hit a solid piece of material. This additional swinging feature gives the tractor driver the opportunity to brake in time, before serious damage is done to the mower. This safety feature is totally maintenance free and runs reliably for years.
Safety valve protection. Nova BCRM has 2 safety valve to prevent tractor falling accident due to mower falling too fast. When transport the BCRM, Nova provide 2 locking pin to keep mower in safe transport position.
Replaceable counter knife. The new replaceable counter knife, integrated in the mower housing, are helping to do an even more efficient job as before.
Heavy duty roller. The mowing height is adjusted by the heavy, ball-bearing mounted self cleaning rear roller, to prevent the mower from cutting into the ground on bumpy surface.
Heavy duty front flaps. The mower's front is equipped with heavy duty safety flaps to prevent debris and stones being thrown out of the machine.
Solid wooden packing box. The mower is delivered in the massive Nova Tractor wooden boxes.
Belt tension test window. Like all other Nova Tractor mowers, the BCRM series has an electronically balanced rotor shaft which is driven by 3 or 4 belts depending on the working width. Despite the high flail hammer knife weight of 800gr/1.76lbs, this guarantees an almost 100% power transfer rate with virtually 0% belt slippage. The new Nova belt cover is unique in the BCRM mower class. The correct belt tension can be checked within seconds without having to remove the belt cover. This makes service and maintenance a lot easier than before.
Electronically balanced rotor. All the Nova Tractor mowers has an electronically balanced knife shaft which is driven by 3 or 4 wide belts. The heavy free-wheel gear box runs in an oil bath, so the transmission oil has to be filled up before you first use the machine.
We from Nova Tractor firmly believe that you will not find a better value for money mid size flail mower in the US market. Feel free to compare ours to the other products in the market and we are sure you will agree.
ATTENTION:
BCRM ditch bank mower has two cylinders, so it needs two loops tractor rear hydraulics.
![](https://cdn.shopifycdn.net/s/files/1/0224/2933/5626/products/2-loops-tractor-rear-hydraulics_d831a634-453d-4473-9899-933ef8803a56_2048x2048.jpg?v=1673348182)
Partially assembled machines do not contain any fuel, oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.
Technical Data |
BCRM-135
|
BCRM-155
|
BCRM-175
|
Dimensions (LxWxH) |
1680x1500x610mm / 67x59x24inch
|
1680x1700x610mm / 67x67x24inch
|
1680x1900x610mm / 67x75x24inch
|
total weight |
414KG / 912lbs
|
431KG / 950lbs
|
447KG / 985lbs
|
cutting width |
1350mm / 53inch
|
1550mm / 61inch
|
1750mm / 68inch
|
adjustable mowing height |
20 - 75mm / 0.75 - 2.95inch
|
||
hydraulic side movement |
1105mm / 43inch
|
||
max. range from middle of tractor | 2005mm / 78inch (horizontal position) | 2205mm / 86inch (horizontal position) | 2405mm / 94inch (horizontal position) |
max. range from middle of tractor |
1343mm / 52inch(in 90° position for hedge trimming)
|
||
slope mowing able |
-60° ~ 90°
|
||
3-point hitch |
Cat 1 (Cat 2 bushings included)
|
||
PTO shaft clockwise |
540 RPM
1500mm / 59inch
|
||
PTO shaft length | |||
total length of hydraulic pipes |
70/79/121/131inch
|
||
working efficiency per hour (approx.) |
5400 - 10800 m2 / 1.3 – 2.6acre
|
6200 - 12400 m2 / 1.5 – 3acre
|
7000 - 14000 m2 / 1.7 – 3.4acre
|
drive system |
3 belt system
|
3 belt system
|
4 belt system
|
Tractor engine power, recommended |
30-40hp / 22-30KW
|
40-55hp / 30-41KW
|
45-60hp / 34-45KW
|
material strength flail shat cover |
4mm / 0.15inch
|
||
material strength side walls |
6mm / 0.23inch
|
||
painting |
powder coating
|
||
flail form |
hammer (Y-knives available)
|
||
number of flails (separately exchangable) |
18
|
22
|
26
|
weight per flail |
800gr / 1.76lb
|
||
RPM of flail shaft |
2200
|
||
transport box (LxWxH) |
142x92x82cm / 56x37x33inch
|
162x92x82cm / 64x37x33inch
|
182x92x82cm / 72x37x33inch
|

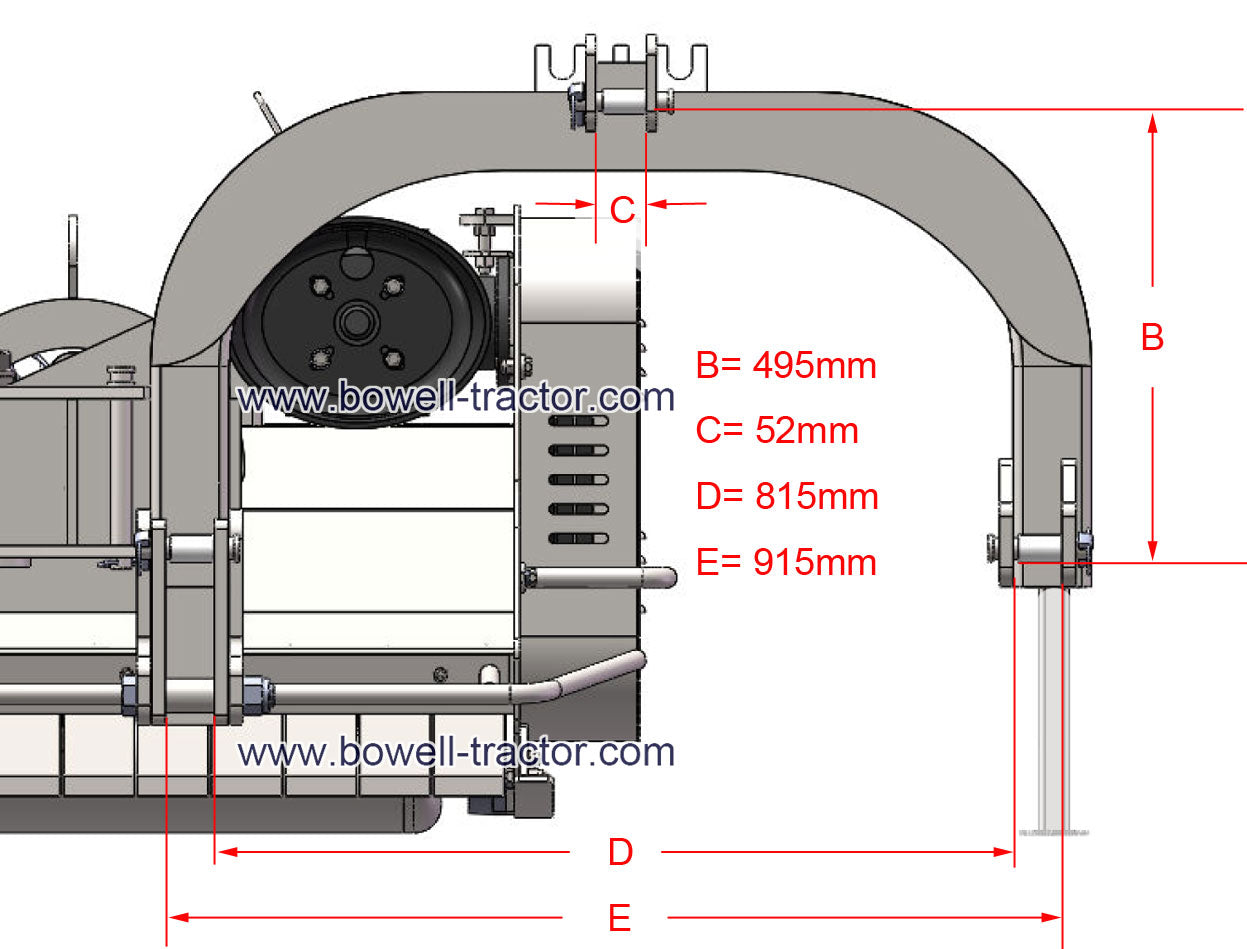

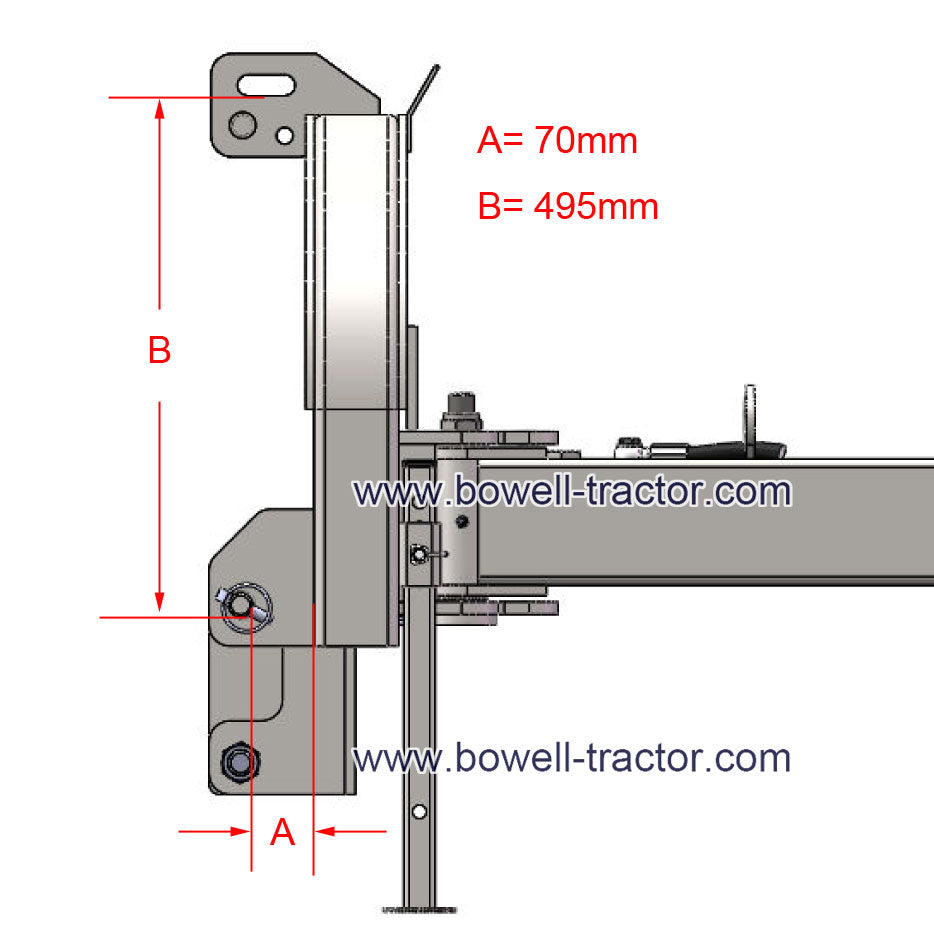

Check mower's 3 point hitch size from here.
![](https://cdn.shopifycdn.net/s/files/1/0224/2933/5626/products/BCRM-3-point-hitch-size-2_2048x2048.jpg?v=1673349118)
![](https://cdn.shopifycdn.net/s/files/1/0224/2933/5626/products/BCRM-3-point-hitch-size-1_2048x2048.jpg?v=1673349118)

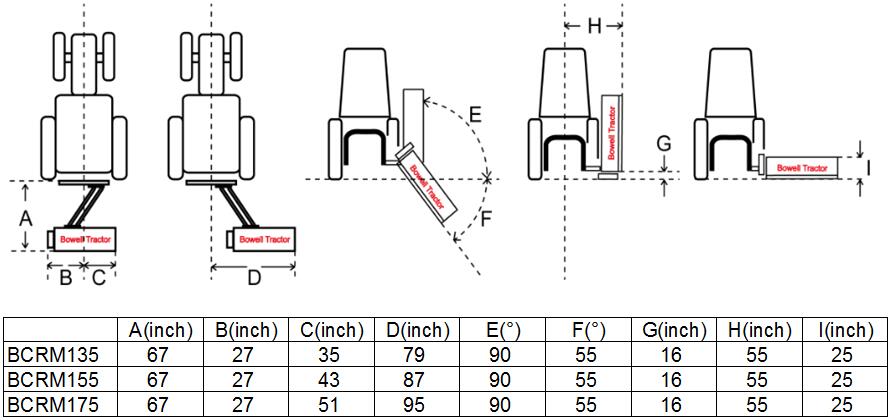

Check mower's position on your tractor according to this size list.
![](https://cdn.shopifycdn.net/s/files/1/0224/2933/5626/products/BCRMinchsize_2048x2048.jpg?v=1673349118)
